【鸿蒙征文】uniapp 实现鸿蒙自定义扫码界面

有些应用场景，需要使用自定义扫码的界面，添加自定义的布局和功能，相比 uniapp 自带的 uni.scanCode ，布局更加自由，完全使用鸿蒙开发的布局能力。

官网 自定义界面扫码 文档提供了明确的接入方案，这里使用 Uniapp 提供的嵌入原生组件来完成，思路都是相通的，回一个就会所有的原生组件方案了。

涉及到鸿蒙原生的组件、原生能力就得使用 uniapp 嵌入原生组件了，详细看文档 嵌入鸿蒙原生组件

整体思路比较简单

• 测试鸿蒙原生工程写法，完成布局逻辑、扫码逻辑编写，可直接使用官网提供的 demo
• 编写 uts 代码，引入 ets 文件并完成代码封装
• 页面中使用

了解原生写法

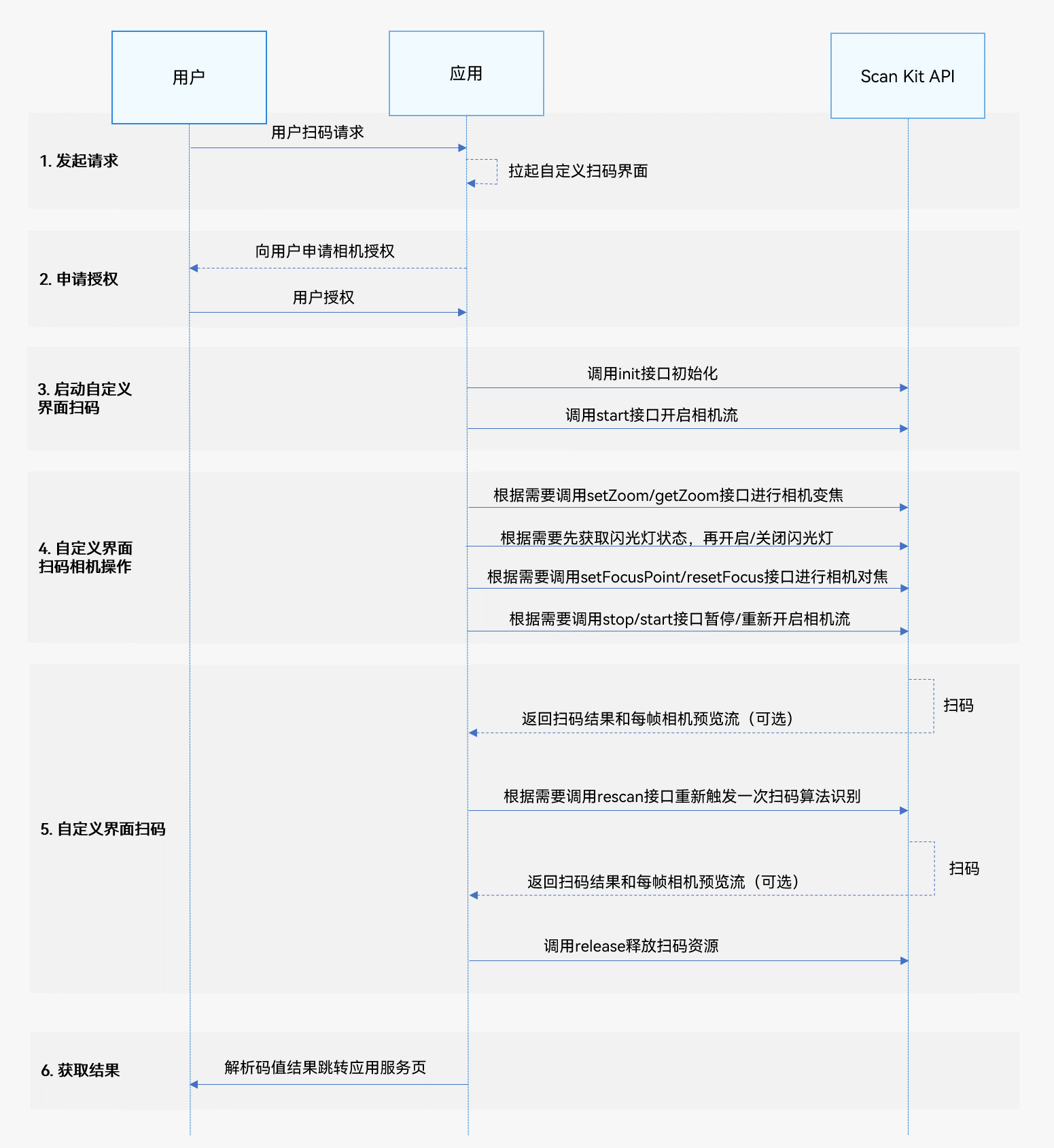

一图胜千言：

• 核心逻辑：权限处理-拉齐页面-释放扫码资源
• 核心方法 init/start/stop/release等

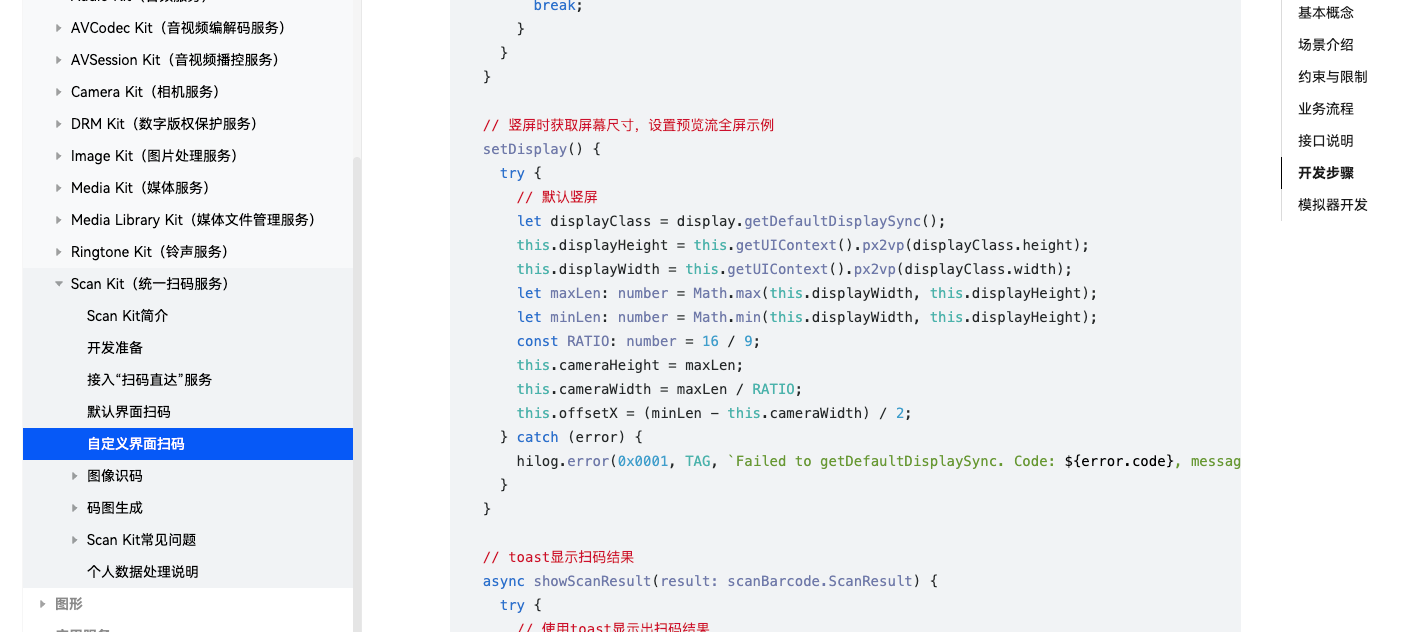

官网中提供了一个示例，

代码相对清晰：

• 定义基础 state
• 定义权限请求
• 定义 customScan.init 完成初始化，并处理扫码逻辑
• 布局时候添加了闪光灯的按钮

需要注意的是，在核心 ets 代码之外有一个固定的封装

@Component
struct HarmoyScanLayoutComponent{}

@Builder
function ScanLayoutBuilder(options: ScanLayoutBuilderOptions) {
  HarmoyScanLayoutComponent({
    enableMultiMode: options.enableMultiMode ?? true,
    enableAlbum: options.enableAlbum ?? true,
    onScanResult: options?.on?.get?.('scanresult'),
    onFlashLightChange: options?.on?.get?.('flashlightchange')
  })
    .width(options.width)
    .height(options.height)
}

defineNativeEmbed('harmoy-scan-layout', {
  builder: ScanLayoutBuilder
})

参考 uniapp 文档了解即可。这里定义 Component 和 Builder 是固定的写法。

编写 uts 插件代码

HBuilderX 中新建 uni api 插件，定位到 app-harmony 文件夹。新建 index.uts 和 scan.ets。

index.uts 比较简单，就一行代码

import './scan.ets'

scan.ets 完整代码简附录。

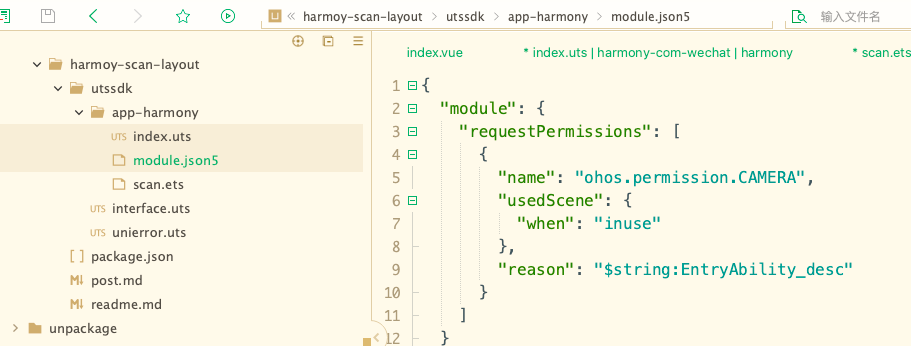

这里用到了摄像头的权限，因此需要使用 module.json5

{
  "module": {
    "requestPermissions": [
      {
        "name": "ohos.permission.CAMERA",
        "usedScene": {
          "when": "inuse"
        },
        "reason": "$string:EntryAbility_desc"
      }
    ]
  }
}

这里忽略了 interface.uts 和 unierror.uts 的代码。

完整的目录结构是

--app-harmony
----index.uts
----scan.ets
--interface.uts
--unierror.uts

页面中使用

<template>
    <view>
        <embed class="scan-area" tag="harmoy-scan-layout" :options="options" @scanresult="onScanResult"
            @flashlightchange="onFlashChange" />
    </view>
</template>

<script>
    import '@/uni_modules/harmoy-scan-layout'
    export default {
        data() {
            return {
                options: {
                    // 可选：是否开启多码识别（默认 true）
                    enableMultiMode: true,
                    // 可选：是否允许相册识别（默认 true）
                    enableAlbum: true
                }
            }
        },
        methods: {
            onScanResult(e) {
                uni.showToast({
                    title:JSON.stringify(e)
                })
                console.log('scanresult', e.detail.results)
            },
            onFlashChange(e) {
                console.log('flashlight enabled:', e.detail.enabled)
            }
        }
    }
</script>

<style scoped>
    .scan-area {
        display: block;
        width: 100%;
        height: 90vh;
    }
</style>

附录 scan.ets 代码

import abilityAccessCtrl from '@ohos.abilityAccessCtrl'
import common from '@ohos.app.ability.common'
import { customScan, scanBarcode, scanCore } from '@kit.ScanKit';
import { BusinessError } from '@kit.BasicServicesKit';

const TAG: string = '[harmoy-scan-layout]'

interface ScanLayoutBuilderOptions extends NativeEmbedBuilderOptions {
  // 是否开启多码识别（默认: true）
  enableMultiMode?: boolean
  // 是否允许从相册识别（默认: true）
  enableAlbum?: boolean
}

interface ScanResultEventDetail {
  results: Array<scanBarcode.ScanResult>
}

@Component
struct HarmoyScanLayoutComponent {
  // 组件参数
  @Prop enableMultiMode: boolean
  @Prop enableAlbum: boolean
  // 事件回调（通过 options.on 传入）
  onScanResult?: Function
  onFlashLightChange?: Function
  // 状态
  @State userGrant: boolean = false
  @State surfaceId: string = ''
  @State isShowBack: boolean = false
  @State isFlashLightEnable: boolean = false
  @State isSensorLight: boolean = false
  @State cameraHeight: number = 640
  @State cameraWidth: number = 360
  @State offsetX: number = 0
  @State offsetY: number = 0
  @State zoomValue: number = 1
  @State setZoomValue: number = 1
  @State scaleValue: number = 1
  @State pinchValue: number = 1
  @State displayHeight: number = 0
  @State displayWidth: number = 0
  @State scanResult: Array<scanBarcode.ScanResult> = []
  canIUse: boolean = canIUse("SystemCapability.Multimedia.Scan.ScanBarcode")
  private mXComponentController: XComponentController = new XComponentController()

  aboutToAppear(): void {
    // 生命周期开始：申请权限并初始化
    (async () => {
      await this.requestCameraPermission()
      this.setDisplay()
      try {
        const options: scanBarcode.ScanOptions = {
          // 与平台枚举对齐，由内部适配完成
          scanTypes: [scanCore.ScanType.ALL],

          enableMultiMode: this.enableMultiMode ?? true,
          enableAlbum: this.enableAlbum ?? true
        }
        if (this.canIUse) {
          customScan.init(options)
        } else {
          // Fallback for unsupported SystemCapability
        }
      } catch (error) {
        hilog.error(0x0001, TAG, `Failed to init customScan. Code: ${error?.code}, message: ${error?.message}`)
      }
    })()
  }

  aboutToDisappear(): void {
    // 生命周期结束：停止与释放
    this.userGrant = false
    this.isFlashLightEnable = false
    this.isSensorLight = false
    try {
      customScan.off?.('lightingFlash')
    } catch (error) {
      hilog.error(0x0001, TAG, `Failed to off lightingFlash. Code: ${error?.code}, message: ${error?.message}`)
    }
    this.customScanStop()
    try {
      customScan.release?.().catch((error: BusinessError) => {
        hilog.error(0x0001, TAG, `Failed to release customScan. Code: ${error?.code}, message: ${error?.message}`)
      })
    } catch (error) {
      hilog.error(0x0001, TAG, `Failed to release customScan. Code: ${error?.code}, message: ${error?.message}`)
    }
  }

  // 用户申请权限
  async reqPermissionsFromUser(): Promise<number[]> {
    hilog.info(0x0001, TAG, 'reqPermissionsFromUser start')
    const context = (this.getUIContext().getHostContext() as common.UIAbilityContext)
    const atManager = abilityAccessCtrl.createAtManager()
    try {
      const grantStatus = await atManager.requestPermissionsFromUser(context, ['ohos.permission.CAMERA'])
      return grantStatus.authResults
    } catch (error) {
      hilog.error(0x0001, TAG, `Failed to requestPermissionsFromUser. Code: ${error?.code}, message: ${error?.message}`)
      return []
    }
  }

  // 用户申请相机权限
  async requestCameraPermission() {
    const grantStatus = await this.reqPermissionsFromUser()
    for (let i = 0; i < grantStatus.length; i++) {
      if (grantStatus[i] === 0) {
        hilog.info(0x0001, TAG, 'Succeeded in getting permissions.')
        this.userGrant = true
        break
      }
    }
  }

  // 竖屏时获取屏幕尺寸，设置预览流全屏示例
  setDisplay() {
    try {
      const displayClass = display.getDefaultDisplaySync()
      this.displayHeight = this.getUIContext().px2vp(displayClass.height)
      this.displayWidth = this.getUIContext().px2vp(displayClass.width)
      const maxLen: number = Math.max(this.displayWidth, this.displayHeight)
      const minLen: number = Math.min(this.displayWidth, this.displayHeight)
      const RATIO: number = 16 / 9
      this.cameraHeight = maxLen
      this.cameraWidth = maxLen / RATIO
      this.offsetX = (minLen - this.cameraWidth) / 2
    } catch (error) {
      hilog.error(0x0001, TAG, `Failed to getDefaultDisplaySync. Code: ${error?.code}, message: ${error?.message}`)
    }
  }

  // toast显示扫码结果
  async showScanResult(result: string = 'ok') {
    try {
      this.getUIContext().getPromptAction().showToast({
        message: result,
        duration: 3000
      })
    } catch (error) {
      hilog.error(0x0001, TAG, `Failed to showToast. Code: ${error?.code}, message: ${error?.message}`)
    }
  }

  initCamera() {
    this.isShowBack = false
    this.scanResult = []
    const viewControl: customScan.ViewControl = {
      width: this.cameraWidth,
      height: this.cameraHeight,
      surfaceId: this.surfaceId
    }
    try {
        if (canIUse("SystemCapability.Multimedia.Scan.ScanBarcode")) {
          customScan.start(viewControl)
            .then((result) => {
              hilog.info(0x0001, TAG, `result: ${JSON.stringify(result)}`)
              if (result?.length) {
                this.scanResult = result
                this.isShowBack = true
                // 事件回传
                if (this.onScanResult) {
                  console.log('onScanResult', result)
                  const detail: ScanResultEventDetail = { results: result }
                  this.onScanResult({ detail })
                }
                this.customScanStop()
              }
            })
            .catch((error: BusinessError) => {
              hilog.error(0x0001, TAG, `Failed to start customScan. Code: ${error?.code}, message: ${error?.message}`)
            })
        } else {
          // Fallback for unsupported SystemCapability
        }
    } catch (error) {
      hilog.error(0x0001, TAG, `Failed to start customScan. Code: ${error?.code}, message: ${error?.message}`)
    }
  }

  customScanStop() {
    try {
      if (this.canIUse) {
        customScan.stop().catch((error: BusinessError) => {
          hilog.error(0x0001, TAG, `Failed to stop customScan. Code: ${error?.code}, message: ${error?.message}`)
        })
      } else {
        // Fallback for unsupported SystemCapability
      }
    } catch (error) {
      hilog.error(0x0001, TAG, `Failed to stop customScan. Code: ${error?.code}, message: ${error?.message}`)
    }
  }

  public customGetZoom(): number {
    let zoom = 1
    try {
      zoom = customScan.getZoom?.() ?? 1
      hilog.info(0x0001, TAG, `Succeeded in getting zoom, zoom: ${zoom}`)
    } catch (error) {
      hilog.error(0x0001, TAG, `Failed to get zoom. Code: ${error?.code}, message: ${error?.message}`)
    }
    return zoom
  }

  public customSetZoom(pinchValue: number): void {
    try {
      customScan.setZoom?.(pinchValue)
      hilog.info(0x0001, TAG, `Succeeded in setting zoom.`)
    } catch (error) {
      hilog.error(0x0001, TAG, `Failed to set zoom. Code: ${error?.code}, message: ${error?.message}`)
    }
  }

  build() {
    Stack() {
      if (this.userGrant) {
        Column() {
          XComponent({
            id: 'componentId',
            type: XComponentType.SURFACE,
            controller: this.mXComponentController
          })
            .onLoad(async () => {
              hilog.info(0x0001, TAG, 'Succeeded in loading, onLoad is called.')
              this.surfaceId = this.mXComponentController.getXComponentSurfaceId()
              hilog.info(0x0001, TAG, `Succeeded in getting surfaceId: ${this.surfaceId}`)
              this.initCamera()
              // 闪光灯监听
              try {
                customScan.on?.('lightingFlash', (error: BusinessError, isLightingFlash: boolean) => {
                  if (error) {
                    hilog.error(0x0001, TAG,
                      `Failed to on lightingFlash. Code: ${error?.code}, message: ${error?.message}`)
                    return
                  }
                  if (isLightingFlash) {
                    this.isFlashLightEnable = true
                  } else {
                    try {
                      const status = customScan.getFlashLightStatus?.()
                      if (!status) {
                        this.isFlashLightEnable = false
                      }
                    } catch (error) {
                      hilog.error(0x0001, TAG,
                        `Failed to get flashLightStatus. Code: ${error?.code}, message: ${error?.message}`)
                    }
                  }
                  this.isSensorLight = isLightingFlash
                  if (this.onFlashLightChange) {
                    // this.onFlashLightChange({ detail: { enabled: this.isFlashLightEnable } })
                    console.warn('onFlashLightChange==')

                  }
                })
              } catch (error) {
                hilog.error(0x0001, TAG,
                  `Failed to bind lightingFlash. Code: ${error?.code}, message: ${error?.message}`)
              }
            })
            .width(this.cameraWidth)
            .height(this.cameraHeight)
            .position({ x: this.offsetX, y: this.offsetY })
        }
        .height('100%')
        .width('100%')
      }

      // 操作区（简单控制：闪光灯、重新扫码、变焦）
      Column() {
        Row() {
          Button('FlashLight')
            .onClick(() => {
              let lightStatus: boolean = false
              try {
                lightStatus = customScan.getFlashLightStatus?.() ?? false
              } catch (error) {
                hilog.error(0x0001, TAG,
                  `Failed to get flashLightStatus. Code: ${error?.code}, message: ${error?.message}`)
              }
              if (lightStatus) {
                try {
                  customScan.closeFlashLight?.()
                  setTimeout(() => {
                    this.isFlashLightEnable = this.isSensorLight
                    if (this.onFlashLightChange) {
                      // this.onFlashLightChange({ detail: { enabled: this.isFlashLightEnable } })
                      console.log('onFlashLightChange==')
                    }
                  }, 200)
                } catch (error) {
                  hilog.error(0x0001, TAG,
                    `Failed to close flashLight. Code: ${error?.code}, message: ${error?.message}`)
                }
              } else {
                try {
                  customScan.openFlashLight();
                  this.isFlashLightEnable = true
                  if (this.onFlashLightChange) {
                    // this.onFlashLightChange({ detail: { enabled: this.isFlashLightEnable } })
                    console.log('onFlashLightChange==')
                  }
                } catch (error) {
                  hilog.error(0x0001, TAG,
                    `Failed to open flashLight. Code: ${error?.code}, message: ${error?.message}`)
                }
              }
            })
            .visibility((this.userGrant && this.isFlashLightEnable) ? Visibility.Visible : Visibility.None)

          Button('Scan')
            .onClick(() => {
              this.initCamera()
            })
            .visibility(this.isShowBack ? Visibility.Visible : Visibility.None)
        }
        .margin({ top: 10, bottom: 10 })

        Row() {
          Button('缩放比例,当前比例:' + this.setZoomValue)
            .onClick(() => {
              if (!this.isShowBack) {
                if (!this.zoomValue || this.zoomValue === this.setZoomValue) {
                  this.setZoomValue = this.customGetZoom()
                } else {
                  this.zoomValue = this.zoomValue
                  this.customSetZoom(this.zoomValue)
                  setTimeout(() => {
                    if (!this.isShowBack) {
                      this.setZoomValue = this.customGetZoom()
                    }
                  }, 600)
                }
              }
            })
        }
      }
      .width('50%')
      .height(180)
    }
    .width('100%')
    .height('100%')
    .onClick((event: ClickEvent) => {
      if (this.isShowBack) {
        return
      }
      // 设置点击对焦
      const x1 = this.getUIContext().vp2px(event.displayY) / (this.displayHeight + 0.0)
      const y1 = 1.0 - (this.getUIContext().vp2px(event.displayX) / (this.displayWidth + 0.0))
      try {
        customScan.setFocusPoint?.({ x: x1, y: y1 })
        hilog.info(0x0001, TAG, `Succeeded to set focusPoint x1: ${x1}, y1: ${y1}`)
      } catch (error) {
        hilog.error(0x0001, TAG, `Failed to set focusPoint. Code: ${error?.code}, message: ${error?.message}`)
      }
      setTimeout(() => {
        try {
          customScan.resetFocus?.()
        } catch (error) {
          hilog.error(0x0001, TAG, `Failed to reset focus. Code: ${error?.code}, message: ${error?.message}`)
        }
      }, 200)
    })
    .gesture(PinchGesture({ fingers: 2 })
      .onActionUpdate((event: GestureEvent) => {
        if (event) {
          this.scaleValue = event.scale
        }
      })
      .onActionEnd((_: GestureEvent) => {
        if (this.isShowBack) {
          return
        }
        try {
          const zoom = this.customGetZoom()
          this.pinchValue = this.scaleValue * zoom
          this.customSetZoom(this.pinchValue)
          hilog.info(0x0001, TAG, 'Pinch end')
        } catch (error) {
          hilog.error(0x0001, TAG, `Failed to set zoom. Code: ${error?.code}, message: ${error?.message}`)
        }
      })
    )
  }
}
