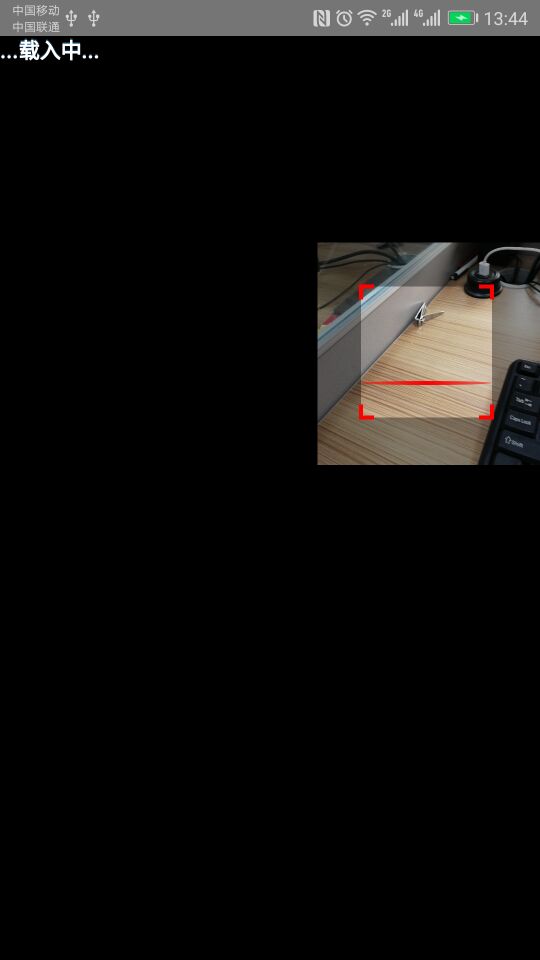

二维码扫描只有一个很小很小的而且在右侧的框

分类:HTML5+

如图。
我的代码如下:

    var scan = null;
    var filter = [];
    // H5 plus事件处理
    mui.plusReady( function() {
        filter = [plus.barcode.QR,plus.barcode.EAN13, plus.barcode.EAN8, plus.barcode.AZTEC, plus.barcode.DATAMATRIX, plus.barcode.UPCA, plus.barcode.UPCE, plus.barcode.CODABAR, plus.barcode.CODE39, plus.barcode.CODE93, plus.barcode.CODE128, plus.barcode.ITF, plus.barcode.MAXICODE, plus.barcode.PDF417, plus.barcode.RSS14, plus.barcode.RSSEXPANDED];
        // 开始扫描
        scan = new plus.barcode.Barcode('bcid', filter);
        scan.onmarked = onmarked;
        scan.start({
            conserve: false
        });
    });
2017-07-04 14:02 负责人:无 分享
已邀请:
Neil_HL

Neil_HL

barcode控件的位置是你自己指定放在“bcid”里面,bcid的大小你自己指定的,当页面卡顿时也可能偶发出现你这样的情况,把完整代码demo发出来我这边才好解决

弄月

弄月 (作者)

    <!DOCTYPE html>
    <html>

        <head>
            <meta charset="utf-8">
            <meta name="viewport" content="initial-scale=1.0, maximum-scale=1.0, user-scalable=no" />
            <title></title>
            <link rel="stylesheet" href="css/mui.min.css" />
            <link rel="stylesheet" href="css/style.css" />
            <link rel="stylesheet" href="css/iconfont.css" />
            <style type="text/css">
                body, .mui-content{
                    background-color: #000000;
                }
                .tip {
                    color: #FFFFFF;
                    font-weight: bold;
                    text-shadow: 0px -1px #103E5C;
                }
            </style>
        </head>

        <body>
            <div class="mui-content" id="bcid">
                <div style="height:40%; width: 100%;"></div>
                <p class="tip">...载入中...</p>
            </div>
            <nav class="mui-bar mui-bar-tab">
                <a id="back" class="mui-action-back mui-tab-item"><span class="mui-icon iconfont icon-houtui"></span>
                    <span class="mui-tab-label">取消</span></a>
                <a id="scan" class="mui-tab-item" style="color: #f00;"><span class="mui-icon iconfont icon-xiangce"></span>
                    <span class="mui-tab-label">相册</span></a>
            </nav>
            <script src="js/mui.min.js"></script>
            <script src="js/app.js"></script>
            <script type="text/javascript">
                var scan = null;
                var filter = [];
                // H5 plus事件处理
                mui.plusReady( function() {
                    filter = [plus.barcode.QR,plus.barcode.EAN13, plus.barcode.EAN8, plus.barcode.AZTEC, plus.barcode.DATAMATRIX, plus.barcode.UPCA, plus.barcode.UPCE, plus.barcode.CODABAR, plus.barcode.CODE39, plus.barcode.CODE93, plus.barcode.CODE128, plus.barcode.ITF, plus.barcode.MAXICODE, plus.barcode.PDF417, plus.barcode.RSS14, plus.barcode.RSSEXPANDED];
                    // 开始扫描
                    scan = new plus.barcode.Barcode('bcid', filter);
                    scan.onmarked = onmarked;
                    scan.start({
                        conserve: false
                    });
                });
                document.getElementById("back").addEventListener('tap', mui.back);
                document.getElementById("scan").addEventListener('tap', scanPicture);

                // 二维码扫描成功
                function onmarked(type, result) {
                    switch (type) {
                        case plus.barcode.QR:
                            type = "QR";
                            break;
                        case plus.barcode.EAN13:
                            type = "EAN13";
                            break;
                        case plus.barcode.EAN8:
                            type = "EAN8";
                            break;
                        default:
                            type = "其它" + type;
                            break;
                    }
                    result = result.replace(/\n/g, '');
                    mui.fire(plus.webview.currentWebview().opener(), 'scaned', {
                        type: type,
                        result: result
                    })
                    mui.back();
                }
                // 从相册中选择二维码图片
                function scanPicture() {
                    plus.gallery.pick(function(path) {
                        plus.barcode.scan(path, onmarked, function(error) {
                            mui.toast("无法识别此图片");
                        });
                    }, function(err) {
                        //plus.nativeUI.alert("Failed: " + err.message);
                    }, filter);
                }
            </script>
        </body>

    </html>
  • 弄月 (作者)

    @372360

    2017-07-05 09:28

  • 弄月 (作者)

    没事了, 解决了

    2017-07-05 10:26

Salazar

Salazar

应该是CSS的问题,试试我这个,我这个是OK的,有些你那边没有的代码要删掉

<!DOCTYPE html>
<html>
    <!--二维码扫描-->

    <head>
        <meta charset="utf-8" />
        <meta name="viewport" content="initial-scale=1.0, maximum-scale=1.0, user-scalable=no" />
        <meta name="HandheldFriendly" content="true" />
        <meta name="MobileOptimized" content="320" />
        <script src="js/mui.min.js"></script>
        <link href="css/mui.min.css" rel="stylesheet" />
        <link rel="stylesheet" href="../css/common.css" type="text/css" charset="utf-8" />
        <!--<link href="css/qrcode-scan.css" rel="stylesheet"></link>-->
        <style>
                #bcid {
        width: 100%;
        position: absolute;
        top: 0px;
        bottom: 44px;
        text-align: center;
    }

    .tip {
        color: #FFFFFF;
        font-weight: bold;
        text-shadow: 0px -1px #103E5C;
    }
        </style>
    </head>

    <body style="background-color: #000000;">
        <header class="mui-bar mui-bar-nav myColor" style="padding-top: 10px;">
            <a class="mui-action-back mui-icon mui-icon-left-nav mui-pull-left" style="color: #ffffff;"></a>
            <h1 id="title" class="mui-title" style="color: #ffffff;">二维码扫描</h1>
        </header>

        <div class="mui-content">
            <div id="bcid">
                <div style="height:40%"></div>
                <p class="tip">Loading...</p>
            </div>
        </div>

        <script type="text/javascript" src="../js/common.js"></script>
        <script type="text/javascript">
            mui.init();
            var sData,
                sTitle,
                currentWebview,
                opener,
                scan,
                domready;
            mui.plusReady(function() {
                //获取传递过来的值,设置顶部标题
                sData = plus.webview.currentWebview();
                //单据信息返回的顶部标题和type
                openedTitle = sData.openedTitle;
                sTitle = sData.sendTitle;
                if(typeof(openedTitle) != 'undefined') {
                    sTitle = openedTitle;
                }
                var title = document.getElementById("title");
                title.innerHTML = sTitle;
            });
            // 开始扫描,H5 plus事件处理
            function startScan() {
                if(currentWebview || !window.plus || !domready) {
                    return;
                }
                // 获取窗口对象
                currentWebview = plus.webview.currentWebview();
                opener = currentWebview.opener();
                // 开始扫描
                currentWebview.addEventListener('show', function() {
                    scan = new plus.barcode.Barcode('bcid');
                    scan.onmarked = onmarked;
                    scan.start({
                        conserve: true,
                        filename: '_doc/barcode/'
                    });
                }, false);
                // 显示页面并关闭等待框
                currentWebview.show('pop-in');
            }
            if(window.plus) {
                startScan();
            } else {
                document.addEventListener('plusready', startScan, false);
            }
            // 监听DOMContentLoaded事件
            document.addEventListener('DOMContentLoaded', function() {
                domready = true;
                startScan();
            }, false);

            // 二维码扫描成功的回调函数
            function onmarked(type, result, file) {
                console.log("0956type=" + type + ",result=" + result + ",file=" + file);
                //跳转到单据信息界面
                var sendType = sData.type;
                var openedType = sData.openedType;
                if(typeof(openedType) != 'undefined') {
                    sendType = openedType;
                }
                mui.openWindow({
                    url: "bills-info.html",
                    id: "bills-info",
                    extras: {
                        result: result,
                        sendTitle: sTitle,
                        type: sendType,
                        tag: "scan"
                    },
                    createNew: true,
                    waiting: {
                        title: 'Loading...', //等待对话框上显示的提示内容
                    },
                    show:{
                        autoShow:false//页面loaded事件发生后自动显示,默认为true(数据加载完成后才关闭加载动画,改善使用效果)
                    }
                });
                console.log("1502result=" + result + "title=" + sTitle + "type=" + sendType);
                //扫描完成后必须关闭当前页面的barcode,防止返回后无法重新扫描
                scan.close();
            }

            //监听物理返回按键,返回主页
            mui.back = function() {
                mui.openWindow({
                    url: "home.html",
                    id: "home.html",
                    createNew: true //创建同样id的webview,相当于重新加载页面
                });
                scan.close();
            }
        </script>

    </body>

</html>
  • 弄月 (作者)

    我试试

    2017-07-05 10:23

弄月

弄月 (作者)

解决了, 其实是JS的问题

  • kay

    你好,请问你的问题是怎么解决的?我也遇到了同样的问题

    2018-03-01 13:14

  • 弄月 (作者)

    回复 kay:看楼下

    2018-03-01 13:17

弄月

弄月 (作者)

@kay

<!DOCTYPE html>
<html>

    <head>
        <meta charset="utf-8">
        <meta name="viewport" content="initial-scale=1.0, maximum-scale=1.0, user-scalable=no" />
        <title></title>
        <link rel="stylesheet" href="css/mui.min.css" />
        <link rel="stylesheet" href="css/iconfont.css" />
        <style type="text/css">
            #bcid {
                width: 100%;
                position: absolute;
                top: 0px;
                bottom: 50px;
                text-align: center;
            }

            .tip {
                color: #FFFFFF;
                font-weight: bold;
                text-shadow: 0px -1px #103E5C;
            }
        </style>
    </head>

    <body style="background-color: #000000;">
        <div class="mui-content">
            <div id="bcid">
                <div style="height:40%"></div>
                <p class="tip">...载入中...</p>
            </div>
            <nav class="mui-bar mui-bar-tab">
                <a id="back" class="mui-action-back mui-tab-item">
                    <span class="mui-icon mui-icon-close"></span>
                    <span class="mui-tab-label">取消</span>
                </a>
                <a id="scan" class="mui-tab-item" style="color: #ffb730;">
                    <span class="mui-icon iconfont icon-pengyouquan"></span>
                    <span class="mui-tab-label">相册</span>
                </a>
            </nav>
        </div>

        <script src="js/mui.min.js"></script>
        <script src="js/app.js"></script>
        <script src="js/immersed.js"></script>
        <script type="text/javascript">
            var scan = null;
            // H5 plus事件处理
            mui.plusReady(function() {
                // 获取窗口对象
                ws = plus.webview.currentWebview();
                // 开始扫描
                ws.addEventListener('show', function() {
                    // 开始扫描
                    scan = new plus.barcode.Barcode('bcid', '', barcodeStyle);
                    scan.onmarked = onmarked;
                    scan.start({
                        conserve: false
                    });
                }, false);
                var barcodeStyle = {
                    frameColor: "#ffbf17",
                    scanbarColor: "#ffbf17"
                }
            });
            document.getElementById("back").addEventListener('tap', mui.back);
            document.getElementById("scan").addEventListener('tap', scanPicture);

            // 二维码扫描成功
            function onmarked(type, result) {
                switch(type) {
                    case plus.barcode.QR:
                        type = "QR";
                        break;
                    case plus.barcode.EAN13:
                        type = "EAN13";
                        break;
                    case plus.barcode.EAN8:
                        type = "EAN8";
                        break;
                    default:
                        type = "其它" + type;
                        break;
                }
                result = result.replace(/\n/g, '');
                mui.fire(plus.webview.currentWebview().opener(), 'scaned', {
                    type: type,
                    result: result
                })
                mui.back();
            }
            // 从相册中选择二维码图片
            function scanPicture() {
                plus.gallery.pick(function(path) {
                    plus.barcode.scan(path, onmarked, function(error) {
                        mui.toast("无法识别此图片");
                    });
                }, function(err) {
                    //plus.nativeUI.alert("Failed: " + err.message);
                });
            }
        </script>
    </body>

</html>
  • kay

    我也是这么写的代码,可是在华为的机器上就不行,我再看看吧,谢谢你

    2018-03-01 13:21
